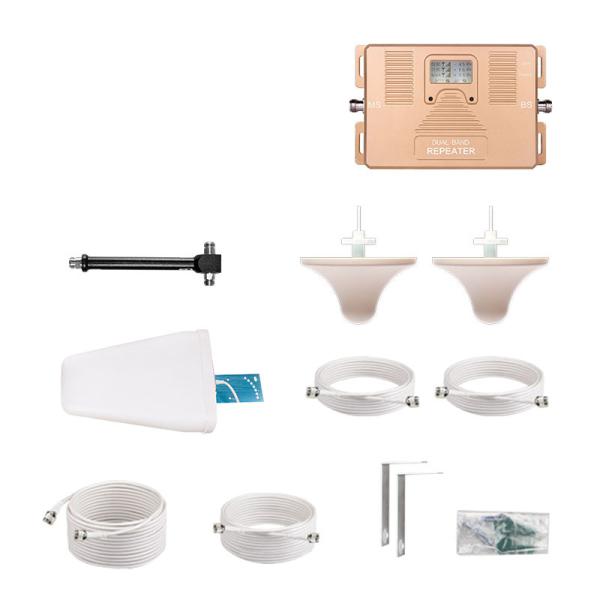

    ATNJ 1800 2100MHz 2g 3g 4g ALC Mobile Network Repeater Dual Band Lte

    Ask Lasest Price
    Brand Name : ATNJ
    Model Number : JS-DB1800/2100
    Certification : CE,ROHS,CCC,TUV,BV, ISO
    Price : USD+120---140+kit
    Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.
    Supply Ability : 1000+unit+per day.
    Delivery Time : 1-3 work days
    • Product Details
    • Company Profile

    ATNJ 1800 2100MHz 2g 3g 4g ALC Mobile Network Repeater Dual Band Lte

    ATNJ 1800 2100MHz 2g 3g 4g ALC Dual-Band Signal Extender Amplifier Lte Mobile Network Repeater Cell Phone Signal


    OVERVIEW

    ATNJ RF repeater with industrial design, combines multi mobile network signals together and improves the mobile voice and data communication, aiming to provide a more cost-effective solution for signal. ATNJ RF repeater is easy to install and maintain, which could help signal providers get fast solution.

    A repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then re-transmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and re-transmitted to the BTS via the opposite direction.

    FEATURES

    • Improve any two mobile networks at the same time
    • LCD display the input/output signal strength
    • Auto isolation detect function
    • Auto gain control
    • Auto level control
    • Auto uplink noise reduction,avoid disturb to BTS
    • Smart LCD to guide the installation
    • Golden color metal industrial design

    WHERE TO USE

    • Indoor: Hotels, Exhibition Centers, Basement, Parking Lots, Shopping Malls, Apartments..
    • Outdoor: Airport, Tunnel, Village, Mining Area, Court, Tourism Area..

    APPLICATION SCENE

    ATNJ 1800 2100MHz 2g 3g 4g ALC Mobile Network Repeater Dual Band Lte

    Technical Specification

    SPECIFICATIONSPARAMETERS
    Frequency RangeLTE 18001710-1785MHz/1805-1880MHz
    UMTS 21001920-1980MHz/2110-2170MHz
    Band WidthLTE 180075MHz
    UMTS 210060MHz
    Gain68±3
    Automatic Gain Control31dB
    MGC (Step Attenuation)20dB@ 1dB/Step
    Output Power20±2dBm
    Spurious Emission9 kHz -150 kHz/1kHz≤-36dBm @1kHz
    150 kHz - 30 MHz/10kHz≤-36dBm@10kHz
    30 MHz - 1 GHz/100kHz≤-36dBm@100kHz
    1 GHz- 12.75 GHz/1MHz≤-30dBm@1kHz
    ACPRUplink Fully comply with 3GPP 36.106
    Downlink Fully comply with 3GPP 36.106
    Unwanted emissionsFully comply with 3GPP 36.106
    VSWR≤2
    RippleLTE 1800≤5dB
    UMTS 2100≤5dB
    Noise Figure≤9dB
    Delay≤3μs
    I/O Impedance50Q
    RF Connector(Customers to Choose)SMA-Type (Female)
    Operating Temperature-25°~+55°
    Power SupplyDC 5V2A
    Power consumption≤15W
    Environment ConditionsIP43
    Humidity≤90%
    Weight0.5kg
    Size205×170×38mm

    Further detail pls click here for downloading the products specification:

    1800+2100MHz A032 mobile signal repeater.pdf



    ATNJ 1800 2100MHz 2g 3g 4g ALC Mobile Network Repeater Dual Band Lte

    ATNJ 1800 2100MHz 2g 3g 4g ALC Mobile Network Repeater Dual Band LteATNJ 1800 2100MHz 2g 3g 4g ALC Mobile Network Repeater Dual Band LteATNJ 1800 2100MHz 2g 3g 4g ALC Mobile Network Repeater Dual Band LteATNJ 1800 2100MHz 2g 3g 4g ALC Mobile Network Repeater Dual Band LteATNJ 1800 2100MHz 2g 3g 4g ALC Mobile Network Repeater Dual Band Lte


    We are manufacturer, and have our own factory.


    FAQ:

    1. Are you trading company or manufacturer ? Could I use our own logo and label?

    We are factory, with trading service. We provide OEM/OEM service.

    2. Can I have a sample order? What is your MOQ?
    Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

    3. Is it easy to set up your items?
    Yes. We have a user manual and support technical support 24/7.

    4. What is your warranty time?
    We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

    5. Please feel free to contact us if any other questions.
