    LTE 800MHz EGSM 900MHz Dual Band Repeater 2G 4G Cellular Signal Amplifier

    Ask Lasest Price
    Brand Name : ATNJ
    Model Number : JS-DB800/E900
    Certification : CE,ROHS,CCC,TUV,BV, ISO
    Price : USD+110---120+kit
    Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.
    Supply Ability : 1000+unit+per day.
    Delivery Time : 2 work days
    • Product Details
    • Company Profile

    LTE 800MHz EGSM 900MHz Dual Band Repeater 2G 4G Cellular Signal Amplifier

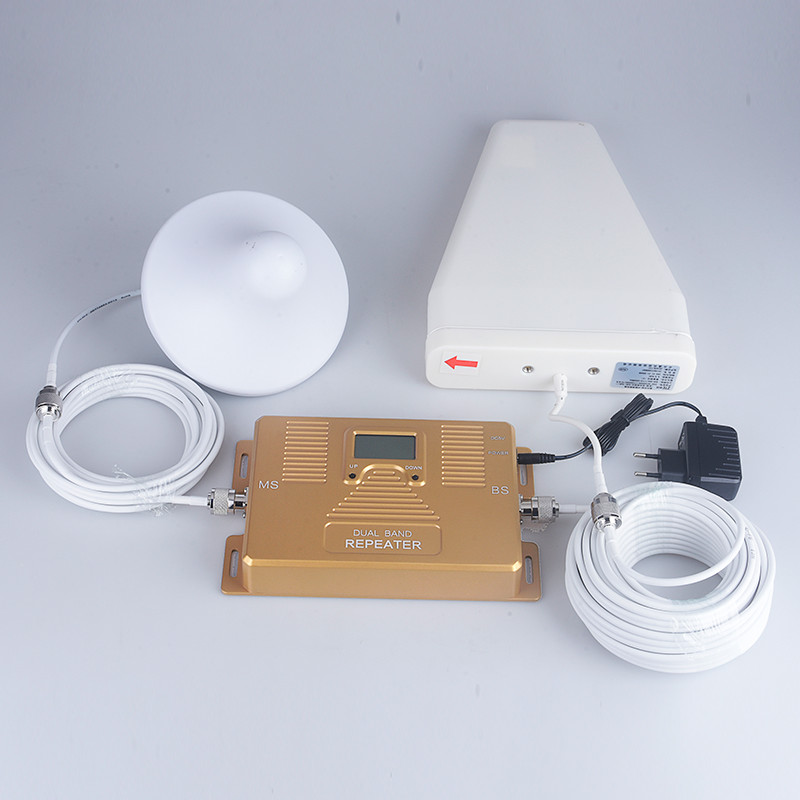

    Dual band LTE 800MHz+EGSM 900MHz 2G 4G Cellular signal amplifier repeater Kit


    ATNJ would keep strict working style, sincere attitude, professional technical support and perfect after-sales services based on the market, providing high-quality and most advanced signal boosters to global users to solve their signal problem.


    Technical Specifications

    Specifications

    Parameters

    Frequency Range (Customers to Choose)

    Uplink

    832-862MHz,880-915MHz

    Downlink

    791-821MHz,925-960MHz

    Frequency Bandwidth

    30MHz&35MHz

    Gain

    70dB

    Automatic gain control (Step Attenuation)

    31dB @ 1dB/ Step

    Auto Gain Control

    20dB Min.

    Output Power(Customers to Choose)

    20dBm

    Spurious Emission

    ≤ -15dBm/30kHz

    9kHz~1GHz: ≤ -36dBm/30kHz

    1GHz~12.75GHz: ≤ -30dBm/30kHz

    Inter-Modulation Attenuation ACPR

    ≤ -40dBc / 30kHz (measured under rated output power)

    In-band Ripple

    ≤ 3dB

    VSWR

    <=2

    I/O Impedance

    50 Ω

    Noise Figure

    ≤ 5dB

    System Delay

    ≤ 5μs

    Operating Temperature

    Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

    Power Supply

    AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

    Dimensions

    165*130*40 (mm)

    Weight

    ≤0.8 kg(Net)

    Alarm Monitoring System

    Alarm for uplink self-oscillation

    Indication LED

    Power supply

    Further detail pls click here for downloading the products specification:

    800+E900MHz A032 mobile signal repeater.pdf


    How does it work?


    1. RECEIVES SIGNAL
    The powerful antenna reaches out to access a good signal, and delivers it to the booster.

    2. BOOSTS SIGNAL
    The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.

    3. BROADCASTS SIGNAL
    Your devices get increased cell reception, and calls and data are fed through the booster back to the network.


    LTE 800MHz EGSM 900MHz Dual Band Repeater 2G 4G Cellular Signal AmplifierLTE 800MHz EGSM 900MHz Dual Band Repeater 2G 4G Cellular Signal AmplifierLTE 800MHz EGSM 900MHz Dual Band Repeater 2G 4G Cellular Signal AmplifierLTE 800MHz EGSM 900MHz Dual Band Repeater 2G 4G Cellular Signal AmplifierLTE 800MHz EGSM 900MHz Dual Band Repeater 2G 4G Cellular Signal AmplifierLTE 800MHz EGSM 900MHz Dual Band Repeater 2G 4G Cellular Signal Amplifier

    LTE 800MHz EGSM 900MHz Dual Band Repeater 2G 4G Cellular Signal AmplifierLTE 800MHz EGSM 900MHz Dual Band Repeater 2G 4G Cellular Signal AmplifierLTE 800MHz EGSM 900MHz Dual Band Repeater 2G 4G Cellular Signal Amplifier

    LTE 800MHz EGSM 900MHz Dual Band Repeater 2G 4G Cellular Signal AmplifierLTE 800MHz EGSM 900MHz Dual Band Repeater 2G 4G Cellular Signal Amplifier


    FAQ:

    1. Are you trading company or manufacturer ? Could I use our own logo and label?

    We are factory, with trading service. We provide OEM/OEM service.

    2. Can I have a sample order? What is your MOQ?
    Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

    3. Is it easy to set up your items?

    Yes. We have a user manual and support technical support 24/7.

    4. What is your warranty time?
    We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

    5. Does the signal booster work have radiation or not ?

    Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.


    6. Can this mobile signal repeater create a signal where there is no cell signal before?

    The mobile signal repeater cannot produce a signal, only amplify a weak one.
