    TUV 4G LTE Repeater , Dual Band Signal Booster 800MHz 1800MHz

    Ask Lasest Price
    Brand Name : ATNJ
    Model Number : JS-DB800/1800
    Certification : CE,ROHS,CCC,TUV,BV, ISO
    Price : USD+100---120+kit
    Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.
    Supply Ability : 1000+unit+per day.
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    TUV 4G LTE Repeater , Dual Band Signal Booster 800MHz 1800MHz

    Gain 70dB 4G LTE Booster 800MHz 1800MHz Dual Band Signal Repeater


    Dual Band Metel Booster 800 / 1800MHz Cellular 2G 3G 4G LTE Signal Repeater Amplifier


    Selling Point

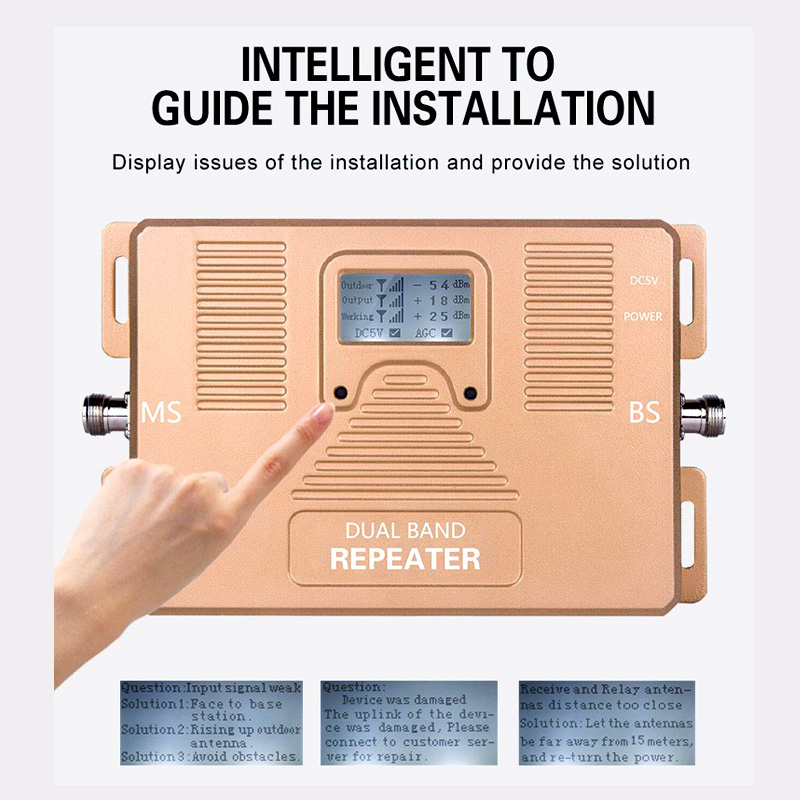

    1. Smart LCD : Show the real-time signal strength.


    2. Sleeping Mode : When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving.


    3. ALC(Automatic Level Control) : Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality.


    4. AGC (Automatic Gain Control) : When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal.


    5. MGC (Manual Gain Control) : In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-27dB.


    Technical Specifications

    SpecificationsParameters
    Frequency Range (Customers to Choose)Uplink832-862MHz,1710-1785MHz
    Downlink791-821MHz, 1805-1880MHz
    Frequency Bandwidth30MHz&75MHz
    Gain70dB
    Automatic gain control (Step Attenuation)31dB @ 1dB/ Step
    Auto Gain Control20dB Min.
    Output Power(Customers to Choose)20dBm
    Spurious Emission≤ -15dBm/30kHz
    9kHz~1GHz: ≤ -36dBm/30kHz
    1GHz~12.75GHz: ≤ -30dBm/30kHz
    Inter-Modulation Attenuation ACPR≤ -40dBc / 30kHz (measured under rated output power)
    In-band Ripple≤ 3dB
    VSWR<=2
    I/O Impedance50 Ω
    Noise Figure≤ 5dB
    System Delay≤ 5μs
    RF Connector(Customers to Choose)N(Female)
    Operating TemperatureOperation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C
    Power SupplyAC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
    Dimensions165*130*40 (mm)
    Weight≤0.8 kg(Net)
    Alarm Monitoring SystemAlarm for uplink self-oscillation
    Indication LEDPower supply

    Further detail pls click here for downloading the products specification:

    800+1800MHz A032 mobile signal repeater.pdf


    Features:


    1. Cost effective solution for weak signal zones, reduce drop/off calls.

    2. Compact size, low power consumption,

    3. easy installation, great cover.

    4. Expansion and extending of the signal of base station.

    5. Optimization of the quality of the signal and source

    6. Cover about 500~3000m² without block or obstruct.

    7. Support any cellular devices (voice & data )

    8. Wide band signal booster, or customize selective band booster.


    Product Description

    TUV 4G LTE Repeater , Dual Band Signal Booster 800MHz 1800MHzTUV 4G LTE Repeater , Dual Band Signal Booster 800MHz 1800MHz


    We are manufacturer, and have our own factory.


    FAQ:

    1. Are you trading company or manufacturer ? Could I use our own logo and label? We are factory, with trading service. We provide OEM/OEM service.

    2. Can I have a sample order? What is your MOQ?
    Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

    3: Is it easy to set up your items?
    A: Yes. We have a user manual and support technical support 24/7.

    4. What is your warranty time?
    We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

    Please feel free to contact us if there are any other questions.
