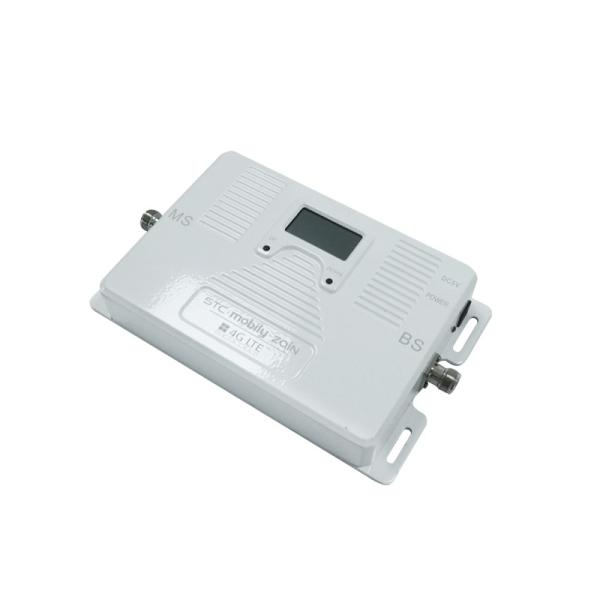

    Dual Band 70dB 4G Signal Repeater Mobile Phone Network Extender

    Ask Lasest Price
    Brand Name : ATNJ
    Model Number : JS-DB850/1700
    Certification : CE,ROHS,CCC,TUV,BV, ISO
    Price : USD+100---120+kit
    Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.
    Supply Ability : 1000+unit+per day.
    Delivery Time : 1-3 work days
    • Product Details
    • Company Profile

    Dual Band 70dB 4G Signal Repeater Mobile Phone Network Extender

    Dual Band 70dB 4G Signal Repeater Mobile Phone Network Extender


    850/1700MHz 2G 3G 4G Dual Band Signal Repeater Mobile Phone Signal Extender Booster Amplify


    General
    The 850/1700MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
    The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.


    Please Check Frequency before Buying How to check?


    - Android mobile phone
    Download App called < Network Cell Info Lite >
    The App will tell the number of LTE band


    - Iphone
    Dial *3001#12345#*
    Clink Cell Serving Info
    Check Freq Band Indicator, the number is LTE Band


    Dual Band Booster 800/1800MHz 2G/4G Signal Repeater Cellular Network Amplifier 0


    Selling Point


    1. Intelligent to guide the installation with LCD


    2. Real time display the signal strength.


    3. Automatic dormancy when no user make the calling


    4. Automatic alarm when installation mistake and provide the according solution


    5. Automatic adjust the system gain to avoid the repeater self-excitation


    6. Initiative reminding when the device was damaged.


    Technical Specifications

    Specifications

    Parameters

    Frequency Range (Customers to Choose)

    Uplink

    824-849MHz, 1710-1755MHz

    Downlink

    869-894MHz, 2110-2155MHz

    Frequency Bandwidth

    25MHz&45MHz

    Gain

    70dB

    Automatic gain control (Step Attenuation)

    31dB @ 1dB/ Step

    Auto Gain Control

    20dB Min.

    Output Power(Customers to Choose)

    20dBm

    Spurious Emission

    ≤ -15dBm/30kHz

    9kHz~1GHz: ≤ -36dBm/30kHz

    1GHz~12.75GHz: ≤ -30dBm/30kHz

    Inter-Modulation Attenuation ACPR

    ≤ -40dBc / 30kHz (measured under rated output power)

    In-band Ripple

    ≤ 3dB

    VSWR

    <=2

    I/O Impedance

    50 Ω

    Noise Figure

    ≤ 5dB

    System Delay

    ≤ 5μs

    RF Connector(Customers to Choose)

    N(Female)

    Operating Temperature

    Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

    Power Supply

    AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

    Dimensions

    165*130*40 (mm)

    Weight

    ≤0.8 kg(Net)

    Alarm Monitoring System

    Alarm for uplink self-oscillation

    Indication LED

    Power supply

    Further detail pls click here for downloading the products specification:

    850+1700MHz A032 mobile signal repeater.pdf


    How does it work?


    1. RECEIVES SIGNAL

    The powerful antenna reaches out to access a good signal, and delivers it to the booster.


    2. BOOSTS SIGNAL

    The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.


    3. BROADCASTS SIGNAL

    Your devices get increased cell reception, and calls and data are fed through the booster back to the network.



    Packaging Including:


    1. Dual Band Booster

    2. 20 meters cable

    3. 5 meters cable

    4. Indoor Ceiling antenna

    5. Outdoor Log-periodic antenna

    6. Power adapter



    Installation Approaches


    1.Fix up outdoor antenna reception on housetop and point to signal tower;


    2.Connect outdoor antenna to “outdoor” port in repeater nachine through cable;


    3.Connect indoor antenna(s) to “indoor” port in repeater machinethrough cable also;


    4.Plug power adaptor into AC power socket and finish installation.


    Dual Band 70dB 4G Signal Repeater Mobile Phone Network Extender

    Dual Band 70dB 4G Signal Repeater Mobile Phone Network ExtenderDual Band 70dB 4G Signal Repeater Mobile Phone Network ExtenderDual Band 70dB 4G Signal Repeater Mobile Phone Network Extender


    FAQ:

    1. Q: Why choose us for cooperation?

    A: We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.


    2. Q: Can this mobile signal repeater create a signal where there is no cell signal before?

    A: The mobile signal repeater cannot produce a signal, only amplify a weak one.


    3. Q: How about gain and output power of your device?
    A: Different models, gain and output power are different,for more details, please contact us.


    4. Q: What's your device lifespan?
    A: Normally our device can be used 5-10 years.


    5. Q: How many square meters can be covered?
    A: For different models, the covered square meters are different.


    6. Q: Can I use your device in suburbs or remote areas?
    A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
