1800MHz 4G Signal Repeater

    Buy cheap 1800MHz 4G Signal Repeater from wholesalers

    Buy cheap 1800MHz 4G Signal Repeater from wholesalers
    • Buy cheap 1800MHz 4G Signal Repeater from wholesalers
    • Buy cheap 1800MHz 4G Signal Repeater from wholesalers

    1800MHz 4G Signal Repeater

    Ask Lasest Price
    Brand Name : ATNJ
    Model Number : AS-D
    Certification : CE,ROHS,CCC,TUV,BV, ISO
    Price : USD+40---49+kit
    Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.
    Supply Ability : 1000+unit+per day.
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

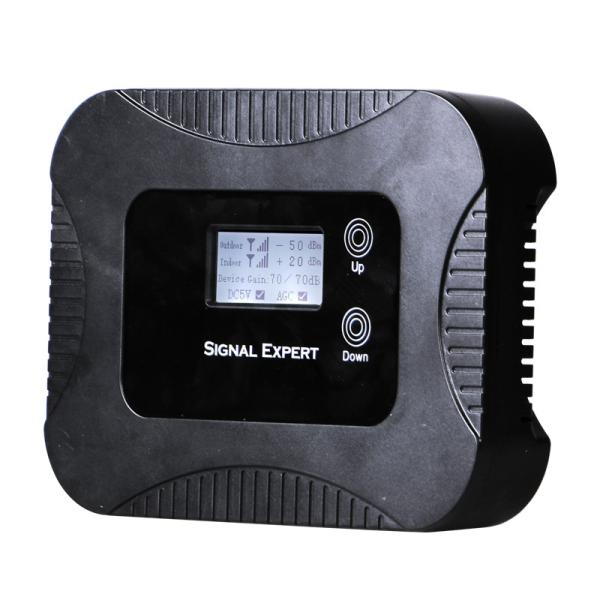

    1800MHz 4G Signal Repeater

    1800MHz 4G Signal Repeater


    1800MHz Mobile Signal Booster Cellular Repeater Amplifier Band3


    Model No AS-D

    1, Intelligent to guide the installation with LCD
    2, Real time display the signal strength.
    3, Automatic dormancy when no user make the calling
    4, Automatic alarm when installation mistake and provide the according solution
    5, Automatic adjust the system gain to avoid the repeater self-excitation
    6, initiative reminding when the device was damaged.


    Description

    Specifications

    Parameters

    Frequency Range (Customers to Choose)

    Uplink

    1710-1785MHz

    Downlink

    1805-1880MHz

    Frequency Bandwidth (3dB Bandwidth)

    75MHz

    Gain

    70dB

    Automatic gain control (Step Attenuation)

    31dB @ 1dB/ Step

    Auto Gain Control

    20dB Min.

    Output Power(Customers to Choose)

    17±3dBm

    Spurious Emission

    ≤ -15dBm/30kHz

    9kHz~1GHz: ≤ -36dBm/30kHz

    1GHz~12.75GHz: ≤ -30dBm/30kHz

    Inter-Modulation Attenuation ACPR

    ≤ -40dBc / 30kHz (measured under rated output power)

    In-band Ripple

    ≤ 3dB

    VSWR

    <=2

    I/O Impedance

    50 Ω

    Noise Figure

    ≤ 5dB

    System Delay

    ≤ 5μs

    RF Connector(Customers to Choose)

    SMA(F)

    Operating Temperature

    - 10°C ~ + 55°C

    Dimensions

    165*130*40 (mm)

    Country of Origin

    Shenzhen China

    Further detail pls click here for downloading the products specification:

    DCS 1800MHz B07 Signal Repeater.pdf

    Product Images

    Feature:


    - Strong output power, wide coverage area .

    - LCD display signal in real time .

    - High gain can support multiple loads .


    FAQ


    1. What is your advantage ?

    ---Your inquiry will be replied in 24hours .

    ---Well-trained and experienced staffs to answer all your inquires in fluent English .

    ---OEM&ODM, for any of your customized products we can help you to design and put into product .

    ---All our products with 12months guarantee .


    2. What is our Payment methods ?


    We agree T/T, Western Union, PayPal.L/C for old customers .

    3. What is our Shipping & Trade terms ?


    Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .


    Delivered time: 1-3 business days for sample, 10-25 days for mass order .

    Trade terms: EXW, FOB , CIF etc .


    4. What is our Warranty and Certificates ?

    Our warranty is 12 months .

    We have CE, ROHS, CCC certificates .


    5. What is your MOQ ?

    1pc sample test is welcomed .
