    800MHz LTE 4G Cell Phone Signal Booster CE ROHS CCC Certificates

    Ask Lasest Price
    Brand Name : ATNJ
    Model Number : AS-800
    Certification : CE,ROHS,CCC,TUV,BV, ISO
    Price : USD+40---49+kit
    Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.
    Supply Ability : 1000+unit+per day.
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    800MHz LTE 4G Cell Phone Signal Booster CE ROHS CCC Certificates

    800MHz LTE 4G Cell Phone Signal Booster CE ROHS CCC Certificates


    800MHz LTE Mobile Signal Booster Amplifier Cellular Signal Repeater 4G


    Model No :AS-800


    Can control gain automatically. Avoid base station interference

    (Band 20) 800MHz -- Uplink frequency: 832-862MHz/Downlink frequency :791-821MHz
    Network support : 4G, Network
    Gain :70±2dB
    Power Supply :AC110V~220V;DC+5V/2A
    Connector Type: SMA-female connector.


    Description

    Specifications

    Parameters

    Frequency Range (Customers to Choose)

    Uplink

    832-862MHz

    Downlink

    791-821MHz

    Frequency Bandwidth (3dB Bandwidth)

    75MHz

    Gain

    70dB

    Automatic gain control (Step Attenuation)

    31dB @ 1dB/ Step

    Auto Gain Control

    20dB Min.

    Output Power(Customers to Choose)

    17±3dBm

    Spurious Emission

    ≤ -15dBm/30kHz

    9kHz~1GHz: ≤ -36dBm/30kHz

    1GHz~12.75GHz: ≤ -30dBm/30kHz

    Inter-Modulation Attenuation ACPR

    ≤ -40dBc / 30kHz (measured under rated output power)

    In-band Ripple

    ≤ 3dB

    VSWR

    <=2

    I/O Impedance

    50 Ω

    Noise Figure

    ≤ 5dB

    System Delay

    ≤ 5μs

    RF Connector(Customers to Choose)

    SMA(F)

    Operating Temperature

    - 10°C ~ + 55°C

    Origin

    Shenzhen,CN

    HS Code

    8543709200

    Further detail pls click here for downloading the products specification:

    LTE 800MHz B07 Signal Repeater.pdf


    1, Intelligent to guide the installation with LCD
    2, Real time display the signal strength.
    3, Automatic dormancy when no user make the calling
    4, Automatic alarm when installation mistake and provide the according solution
    5, Automatic adjust the system gain to avoid the repeater self-excitation
    6, initiative reminding when the device was damaged.

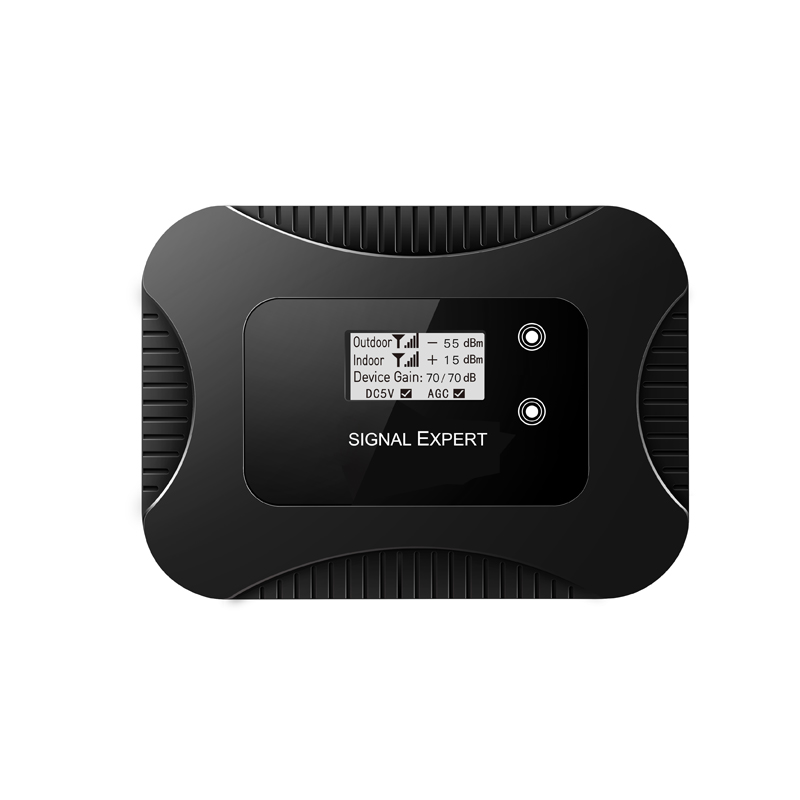

    Product Images


    FAQ


    1. What is your advantage ?


    ---Your inquiry will be replied in 24hours .

    ---Well-trained and experienced staffs to answer all your inquires in fluent English .

    ---OEM&ODM, for any of your customized products we can help you to design and put into product .

    ---All our products with 12months guarantee .


    2. What is our Payment methods ?


    We agree T/T, Western Union, PayPal.L/C for old customers .


    3. What is our Shipping & Trade terms ?


    Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .


    Delivered time: 1-3 business days for sample, 10-25 days for mass order .

    Trade terms: EXW, FOB , CIF etc .


    4. What is our Certificates ?


    We have CE, ROHS, CCC certificates .


    Warranty


    ● Please note that we always check and test the product twice before shipping and pack them well as far as possible.If the product is broken at receiving,please contact us,we would resend you a new one.
    ● Three years warranty period for our booster,it is only 3 months for the accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
