    70dB Gain Mobile Signal Boosters Dual Band 800MHz 1800MHz Repeater

    Ask Lasest Price
    Brand Name : ATNJ
    Model Number : JS-800/1800
    Certification : CE,ROHS,CCC,TUV,BV, ISO
    Price : USD+75---85+kit
    Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.
    Supply Ability : 1000+unit+per day.
    Delivery Time : 2 work days
    • Product Details
    • Company Profile

    70dB Gain Mobile Signal Boosters Dual Band 800MHz 1800MHz Repeater

    70dB Gain Mobile Signal Boosters Dual Band 800MHz 1800MHz Repeater


    Mobile Signal Booster 70dB Gain Dual Band 800 / 1800MHz Cellular 2G 4G Repeater Amplifier

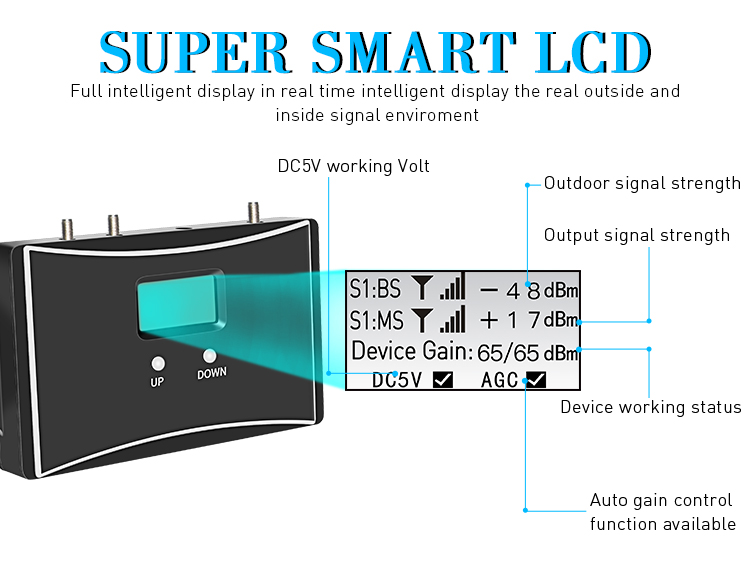

    This amplifier is equipped with an LCD screen that displays the main device parameters, error messages and installation manual.


    Dual band signal booster is supplied as a complete set, which, in addition to the amplifier, contains internal and external antennas, cable, brackets and a power supply. Installation usually takes about 15-20 minutes and does not require any special technical knowledge. Only after you have installed the amplifier and antennas and connected them with cables, you can turn on the system. Please note, however, that cables longer than those included in the kit may adversely affect the repeater's amplification capability. Within seconds. Once switched on, the repeater will provide the entire area with a reliable GSM, EDGE and GPRS signal.


    Technical Specifications

    Specifications

    Parameters

    Frequency Range (Customers to Choose)

    Uplink

    791-821MHz,1710-1785MHz

    Downlink

    832-862MHz, 1805-1880MHz

    Frequency Bandwidth (3dB Bandwidth)

    30MHz&75MHz

    Gain

    70dB

    Automatic gain control (Step Attenuation)

    31dB @ 1dB/ Step

    Auto Gain Control

    20dB Min.

    Output Power(Customers to Choose)

    20dBm

    Spurious Emission

    ≤ -15dBm/30kHz

    9kHz~1GHz: ≤ -36dBm/30kHz

    1GHz~12.75GHz: ≤ -30dBm/30kHz

    Inter-Modulation Attenuation ACPR

    ≤ -40dBc / 30kHz (measured under rated output power)

    In-band Ripple

    ≤ 3dB

    VSWR

    <=2

    I/O Impedance

    50 Ω

    Noise Figure

    ≤ 5dB

    System Delay

    ≤ 5μs

    RF Connector(Customers to Choose)

    SMA(Female)

    Operating Temperature

    Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

    Power Supply

    AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

    Dimensions

    165*130*40 (mm)

    Weight

    ≤0.8 kg(Net)

    Alarm Monitoring System

    Alarm for uplink self-oscillation

    Indication LED

    Power supply

    Further detail pls click here for downloading the products specification:

    800+1800MHz AT005 mobile signal booster.pdf


    Selling Point


    1. Cost-effective solution for weak signal zones, reduce drop/off calls.


    2. Compact size, low power consumption, easy installation, great cover.Expansion and extension of the signal of the base station. Optimization of the quality of the signal and source


    3. High linear design, ALC function design, low interference to BTS.


    4. Support any cellular devices (voice & data & video)


    5. Wideband signal booster, or customize selective band booster.


    6. Support System CDMA800, GSM, DCS, PCS, WCDMA, LTE 4G, etc


    Product Description



    Installation Approaches


    1. Fix up outdoor antenna reception on housetop and point to signal tower;


    2. Connect outdoor antenna to “outdoor” port in repeater nachine through cable;


    3. Connect indoor antenna(s) to “indoor” port in repeater machinethrough cable also;


    4. Plug power adaptor into AC power socket and finish installation.



    Accessories


    a. One dual band signal booster;


    b. Two indoor antenna;


    c. One outdoor antenna;


    d. 20meter cable and 5meter cable;


    e. User manual;


    f. Power adapter.



    The repeater makes the signal stronger in places with poor signal coverage such as:


    1) Underground areas: basements, parking lots, tunnels;


    2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;


    3) Places distant from the BTS like private houses.


    70dB Gain Mobile Signal Boosters Dual Band 800MHz 1800MHz Repeater70dB Gain Mobile Signal Boosters Dual Band 800MHz 1800MHz Repeater


    Our service:


    1. We have long business relationship shipping agent, we can provide you best price, best service based on your destination.


    2. We provide best after service, if there is any doublt after you get products, we try our best to service for you.


    3. We provide warranty is 3 years.


    FAQ:

    1. Are you trading company or manufacturer ? Could I use our own logo and label?

    We are factory, with trading service. We provide OEM/OEM service.

    2. Can I have a sample order? What is your MOQ?
    Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

    3. Is it easy to set up your items?
    Yes. We have a user manual and support technical support 24/7.

    4. Does the signal booster work have radiation or not ?
    Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.


    5. Can this mobile signal repeater create a signal where there is no cell signal before?
    The mobile signal repeater cannot produce a signal, only amplify a weak one.
