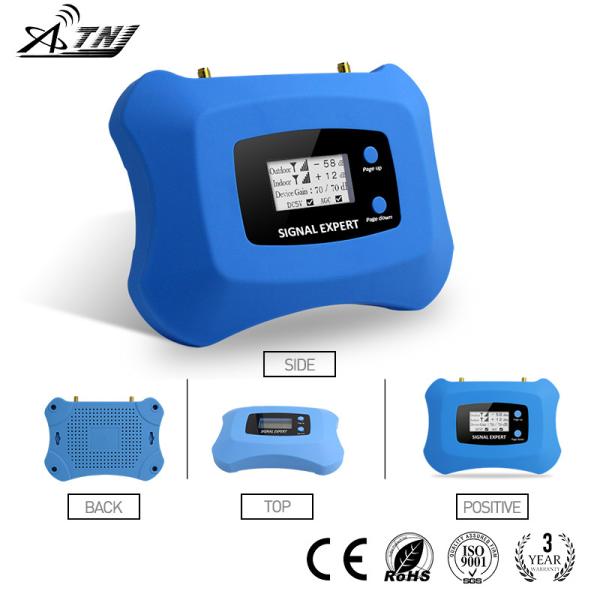

    1900MHz Cell Phone Network Booster Outdoor Indoor Wide Cover

    Ask Lasest Price
    Brand Name : ATNJ
    Model Number : AS-P
    Certification : CE,ROHS,CCC,TUV,BV, ISO
    Price : USD+40---49+kit
    Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.
    Supply Ability : 1000+unit+per day.
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    1900MHz Cell Phone Network Booster Outdoor Indoor Wide Cover

    1900MHz Cell Phone Network Booster Outdoor Indoor Wide Cover


    Mobile Signal Repeater Amplifier Cell Telephone Signal Booster 1900MHz


    Features:

    1. Cost effective solution for weak signal zones, reduce drop/off calls.

    2. Compact size, low power consumption,

    3. easy installation, great cover.

    4. Expansion and extending of the signal of base station.

    5. Optimization of the quality of the signal and source

    6. Cover about 500~3000m² without block or obstruct.

    7. Support any cellular devices (voice & data )

    8. Wide band signal booster, or customize selective band booster.


    Technical Specifications

    Specifications

    Parameters

    Frequency Range (Customers to Choose)

    Uplink

    1850-1910MHz

    Downlink

    1930-1990MHz

    Frequency Bandwidth

    60MHz

    Gain

    70dB

    Automatic gain control (Step Attenuation)

    31dB @ 1dB/ Step

    Auto Gain Control

    20dB Min.

    Output Power(Customers to Choose)

    20dBm

    Spurious Emission

    ≤ -15dBm/30kHz

    9kHz~1GHz: ≤ -36dBm/30kHz

    1GHz~12.75GHz: ≤ -30dBm/30kHz

    Inter-Modulation Attenuation ACPR

    ≤ -40dBc / 30kHz (measured under rated output power)

    In-band Ripple

    ≤ 3dB

    VSWR

    <=2

    I/O Impedance

    50 Ω

    Noise Figure

    ≤ 5dB

    System Delay

    ≤ 5μs

    RF Connector(Customers to Choose)

    SMA (Female)

    Operating Temperature

    Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

    Power Supply

    AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

    Dimensions

    165*130*40 (mm)

    Weight

    ≤0.8 kg(Net)

    Alarm Monitoring System

    Alarm for uplink self-oscillation

    Trademark

    ATNJ

    Further detail pls click here for downloading the products specification:

    Single band PCS 1900MHz RF Repeater.pdf

    Signal Booster Description:


    When the cellphone is connected to the external antenna and the booster, it will think that the cell tower is nearby. Data rates are improved, and dropped calls will be prevented. And best of all, the phone's battery life will be extended, because the phone is not using its full power to find signal. An antenna is mounted outside the vehicle and gets the signal from the network before it is blocked by glass and metal.

    Product Description


    1900MHz Cell Phone Network Booster Outdoor Indoor Wide Cover


    We are manufacturer, and have our own factory.

    FAQ:

    1. Are you trading company or manufacturer ? Could I use our own logo and label?

    We are factory, with trading service. We provide OEM/OEM service.

    2. Can I have a sample order? What is your MOQ?
    Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

    3: Is it easy to set up your items?
    A: Yes. We have a user manual and support technical support 24/7.

    4. What is your warranty time?
    We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

    5. Please feel free to contact us if any other questions.


    Warranty


    ● Please note that we always check and test the product twice before shipping and pack them well as far as possible.If the product is broken at receiving,please contact us,we would resend you a new one.
    ● Three years warranty period for our booster,it is only 3 months for the accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
