    Whole sale mobile repeater GSM 900MHz Mobile Signal Repeater

    Ask Lasest Price
    Brand Name : ATNJ
    Model Number : AT-008-G
    Certification : CE,ROHS,CCC,TUV,BV, ISO
    Price : USD+120---130+kit
    Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.
    Supply Ability : 1000+unit+per day.
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    Whole sale mobile repeater GSM 900MHz Mobile Signal Repeater

    GSM 900MHz Mobile Signal Repeater


    Digital GSM Band8 GSM 900MHz Band Selected Mobile Signal Repeater Amplifier


    Product Detail:


    Model No :AS-008-G

    With ALC AGC Function, WIFI control and monitor

    Can control gain automatically. Avoid base station interference

    (Band 8) 900MHz -- Uplink frequency: 890-915MHz/Downlink frequency : 935-960MHz
    Network support : 2G 3G, Voice
    Gain :70±2dB
    Power Supply :AC110V~220V;DC+5V/2A
    Connector Type: SMA-F

    Wide Range,Supports 10MHz from 0.2 to 10MHz bandwidth adjusted

    Single Band Repeater with AGC/MGC

    Model

    AS-BS-G

    Frenquecy Range

    UplinK:890~915MHz Downlink:935~960MHz

    Working System

    Band8 GSM 900MHz

    Gain

    70dB

    Device Output Power

    17-20dBm

    Bandwidth

    Wide Range,Supports from 0.2 to 20MHz bandwidth adjusted

    Ripple in Band

    ≤4dB

    Noise Figure @ Max.Gain

    ≤6dB

    V.S.W.R

    ≤2dB

    MTBF

    >50000Hours

    Power Supply

    AC110V~220V;DC+5V/2A

    Power Comsumption

    <20W

    Impedance Matching

    50ohm

    Mechanical Specification

    RF Connector

    SMA/F

    Cooling

    Heatsink Convection Cooling

    Dimension

    170*130*26(mm)

    Net Weight

    0.35KG

    Installation Type

    Wall Installation or Desk

    Environment Conditions

    IP40

    WIFI Control

    Done

    Operating Temperature

    -10°C~55°C

    Further detail pls click here for downloading the products specification:

    GSM 900MHz B07 Signal Repeater.pdf

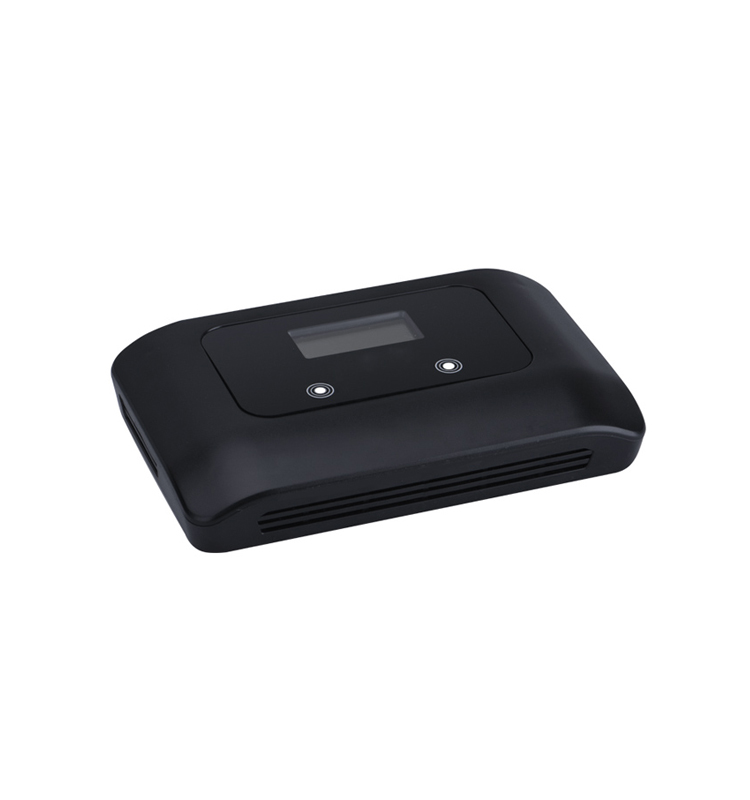

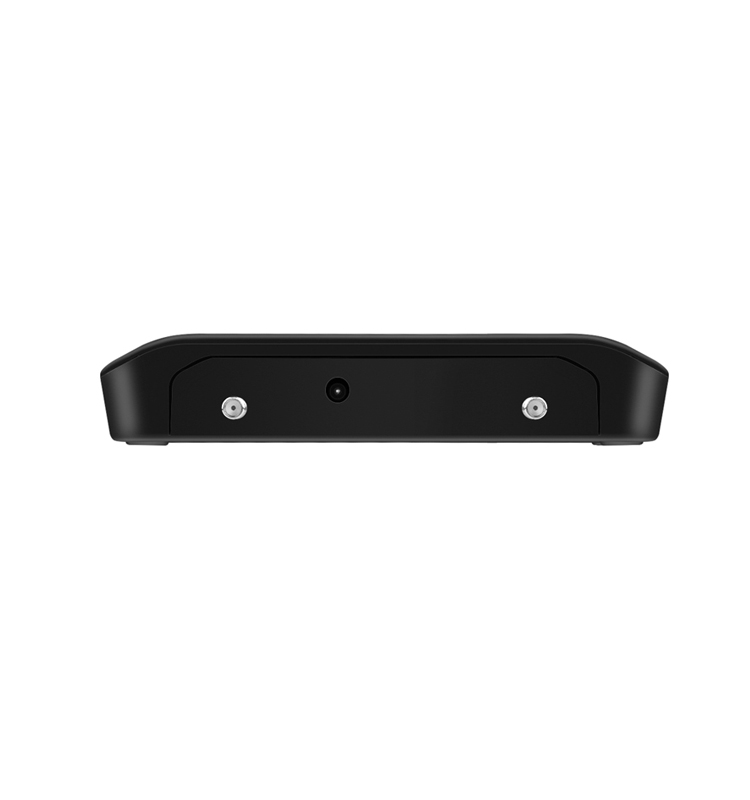

    Product Pictures

    ⭐ Intelligent to guide the installation with LCD .

    ⭐ Real time display the signal strength .

    ⭐ Automatic dormancy when no user make the calling .

    ⭐ Automatic alarm when installation mistake and provide the according solution .

    ⭐ Automatic adjust the system gain to avoid the repeater self-excitation .

    ⭐ Initiative reminding when the device was damaged .

    ⭐ Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
    ⭐ Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .

    ⭐With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .

    ⭐ A variety of appearance customization.
