    850MHz Mobile Signal Repeater

    Ask Lasest Price
    Brand Name : ATNJ
    Model Number : AS-BS-C
    Certification : CE,ROHS,CCC,TUV,BV, ISO
    Price : USD+120---135+kit
    Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.
    Supply Ability : 1000+unit+per day.
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

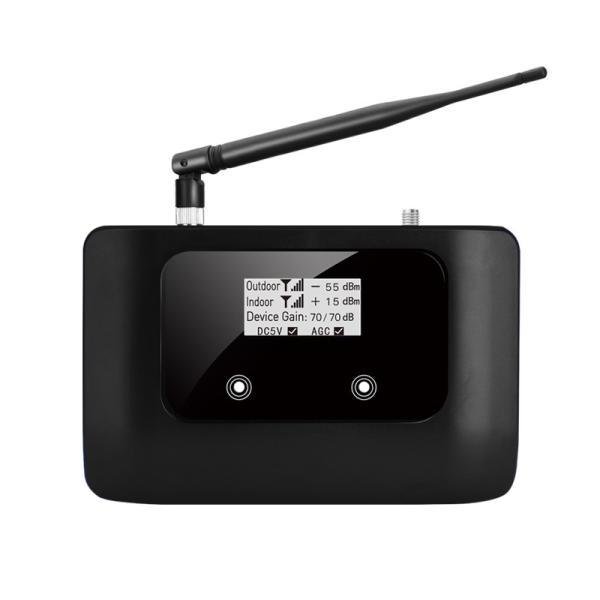

    850MHz Mobile Signal Repeater

    850MHz Mobile Signal Repeater


    Digital 850MHz CDMA 2G 3G Mobile Signal Repeater Selected Band Cellular Amplifier


    Technical Specifications


    Digital Selected Band5 850MHz specially for mobile provider need.


    Specifications

    Parameters

    Frequency Range (Customers to Choose)

    Uplink

    824-849MHz

    Downlink

    869-894MHz

    Frequency Bandwidth (Adjustable)

    10MHz from 0.2 to 10MHz bandwidth adjusted

    Gain

    68±2dB

    Automatic gain control (Step Attenuation)

    31dB @ 1dB/ Step

    Auto Gain Control

    20dB Min.

    Device Output Power

    20dBm

    Spurious Emission

    ≤ -15dBm/30kHz

    9kHz~1GHz: ≤ -36dBm/30kHz

    1GHz~12.75GHz: ≤ -30dBm/30kHz

    Inter-Modulation Attenuation ACPR

    ≤ -40dBc / 30kHz (measured under rated output power)

    In-band Ripple

    ≤ 3dB

    VSWR

    <=2

    I/O Impedance

    50 Ω

    Noise Figure

    ≤ 5dB

    System Delay

    ≤ 5μs

    RF Connector(Customers to Choose)

    SMA (F)

    Operating Temperature

    - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

    Power Supply

    AC 220V/ DC5V/2A

    Dimensions

    165*130*40 (mm)

    Weight

    ≤0.35 kg(Net)

    Alarm Monitoring System

    Alarm for uplink self-oscillation

    LCD Intelligent Guide

    Done

    Further detail pls click here for downloading the products specification:

    CDMA 850MHz B08 RF Repeater.docx.pdf


    Selling Point


    2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.


    Product Description

    1,Intelligent to guide the installation with LCD
    2,Real time display the signal strength.
    3,Automatic dormancy when no user make the calling
    4,Automatic alarm when installation mistake and provide the according solution
    5,Automatic adjust the system gain to avoid the repeater self-excitation
    6,initiative reminding when the device was damaged.

    7,Supports 10MHz from 0.2 to 10MHz bandwidth adjusted


    850MHz Mobile Signal Repeater

    We are manufacturer, and have our own factory.

    FAQ:

    1. Are you trading company or manufacturer ? Could I use our own logo and label?

    We are factory, with trading service. We provide OEM/OEM service.

    2. Can I have a sample order? What is your MOQ?
    Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

    3: Is it easy to set up your items?
    A: Yes. We have a user manual and support technical support 24/7.

    4. What is your warranty time?
    We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
